Bridge DK 75.4 4-Channel Amplifier

4-channel Class D amplifier
4 x 75 watts RMS into 4 ohms

Bridge DK 75.4

4-Channel Class-D Amplifier

- Power: 4 x 75 watts RMS into 4 ohms
- Power: 4 x 125 watts RMS into 2 ohms
- Power: 2 x 250 watts RMS bridged into 4 ohms
- Impedance: 2 – 4 ohms
- Amplifier type: Class-D
- Operating voltage: 7 – 18 V
- Dimensions (L x W x H): 283 x 176 x 50 mm

Features:

• 4-channel high-power amplifier
  - Pure power amplifier without crossovers

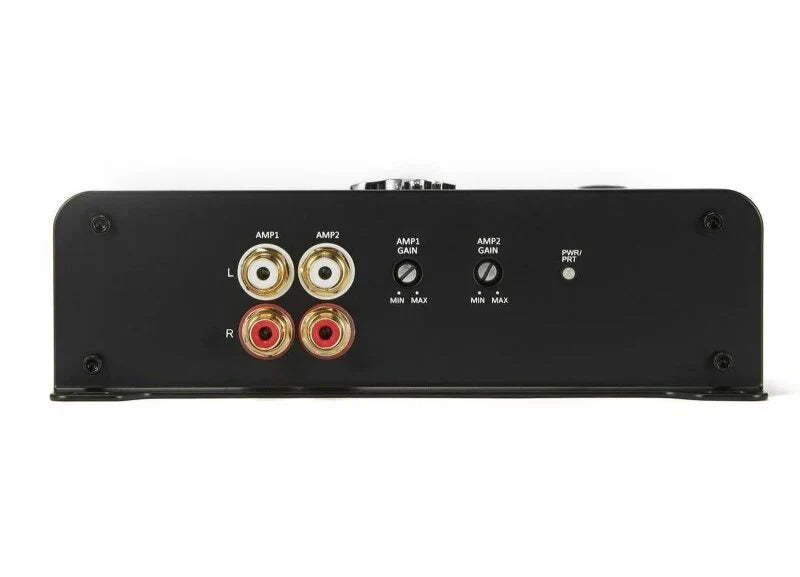

  - Gain control per channel
  - Compact housing for flexible installation options

• The DK 75.4 is a compact Class-D amplifier with high output power and a clear focus on pure amplification. With up to 125 watts RMS per channel at 2 ohms and 250 watts RMS bridged, it convinces with strong performance and efficient operation at the same time. With minimal use of only gain controls, the amplifier is ideal for systems with external signal processing.
